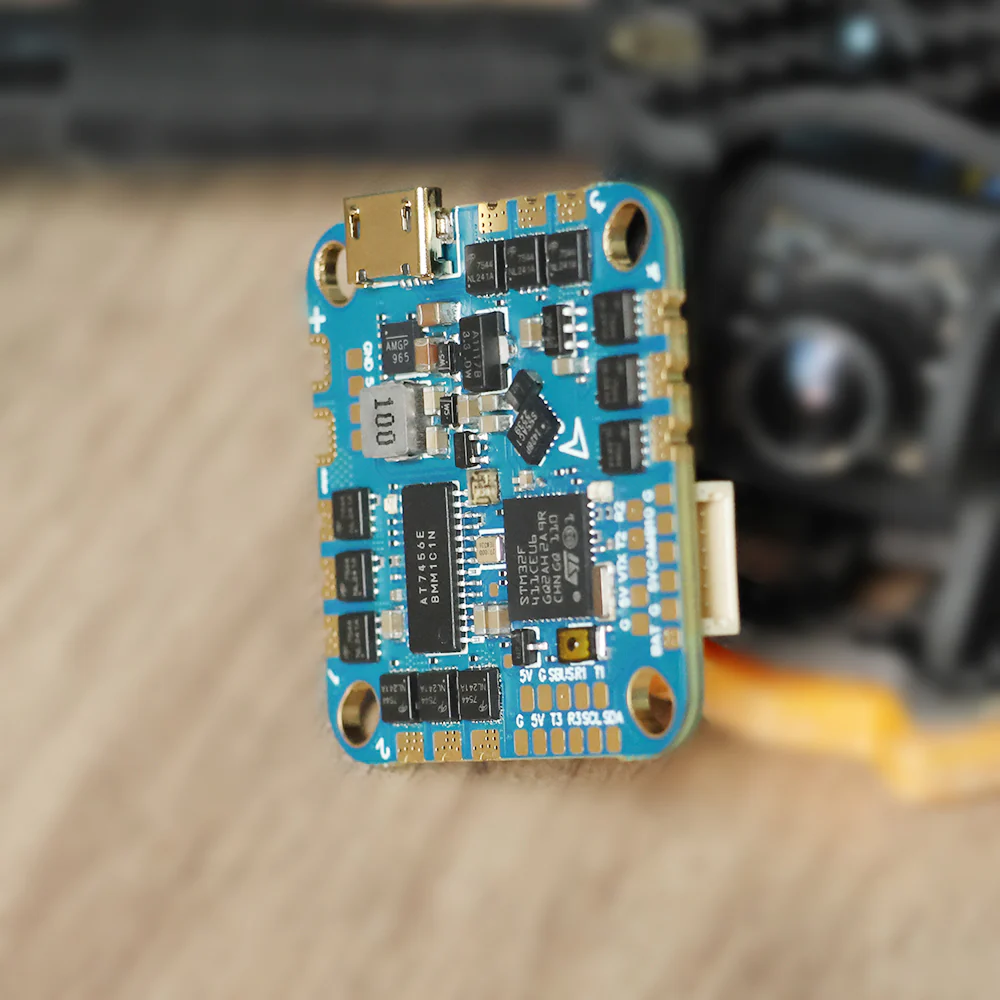

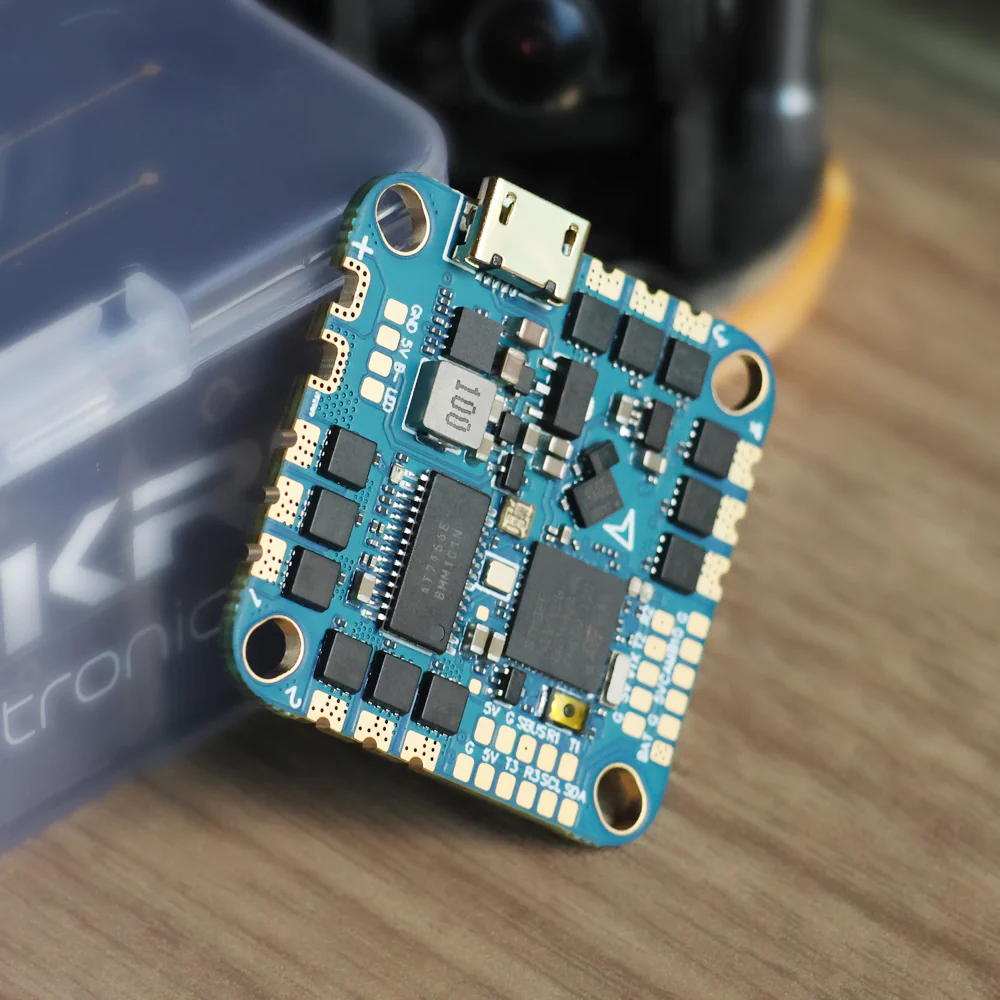

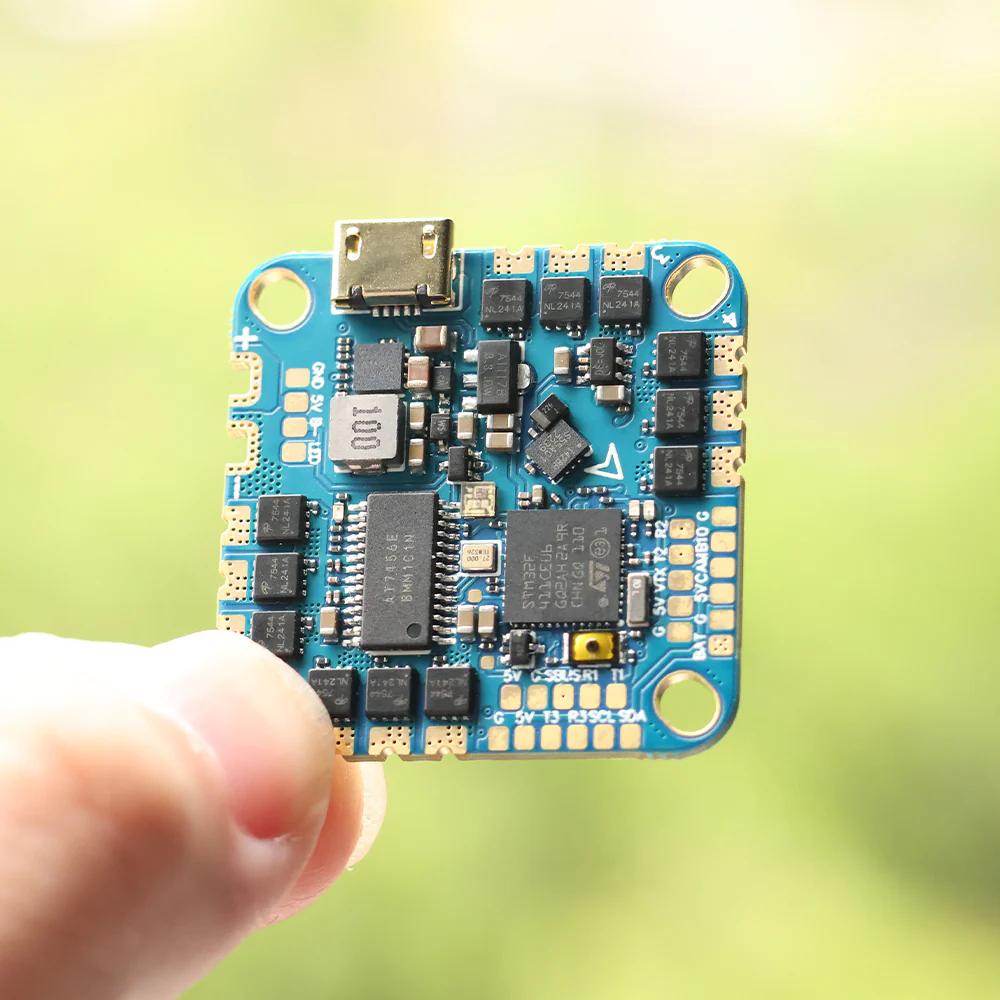

HAKRC F411 20A AIO

  Feature：

1. The PCB uses high-end 8 layers of 2oZ thick copper, which has stronger over current capability and good heat dissipation.

2. MOS adopts imported 30V high current resistance MOS, long life and strong load capacity.

3. Using industrial grade LDO, high temperature resistance.

4. Using high-quality Japanese Murata capacitors, strong filtering performance



  Specifications：

Brand: HAKRC

Item Name: HAKRC F411 20A AIO

Mounting Hole: 25.5*25.5mm/26.5*26.5mm

Weight: 8.5g

Package weight: 50g

Size: 31*31mm



Flight Controller:

CPU: STM32F411CEU6

IMU: ICM42688

OSD: AT7456E

Barometer: SPL06

LED: Suppotr programmabled such as WS2812

Current meter: Yes

Firmware: HAKRC F411D

Support receiver: Frsky/ Futabas/ Flysky/ TBS Crossfire/ DSMX:DSM2



ESC:

Firmware: BLHELI_ S (G- H-20)

Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150，Dshot300，Dshot600

Input: 2S-5S Lipo

Con. Current: 20A

Peak Current: 25A

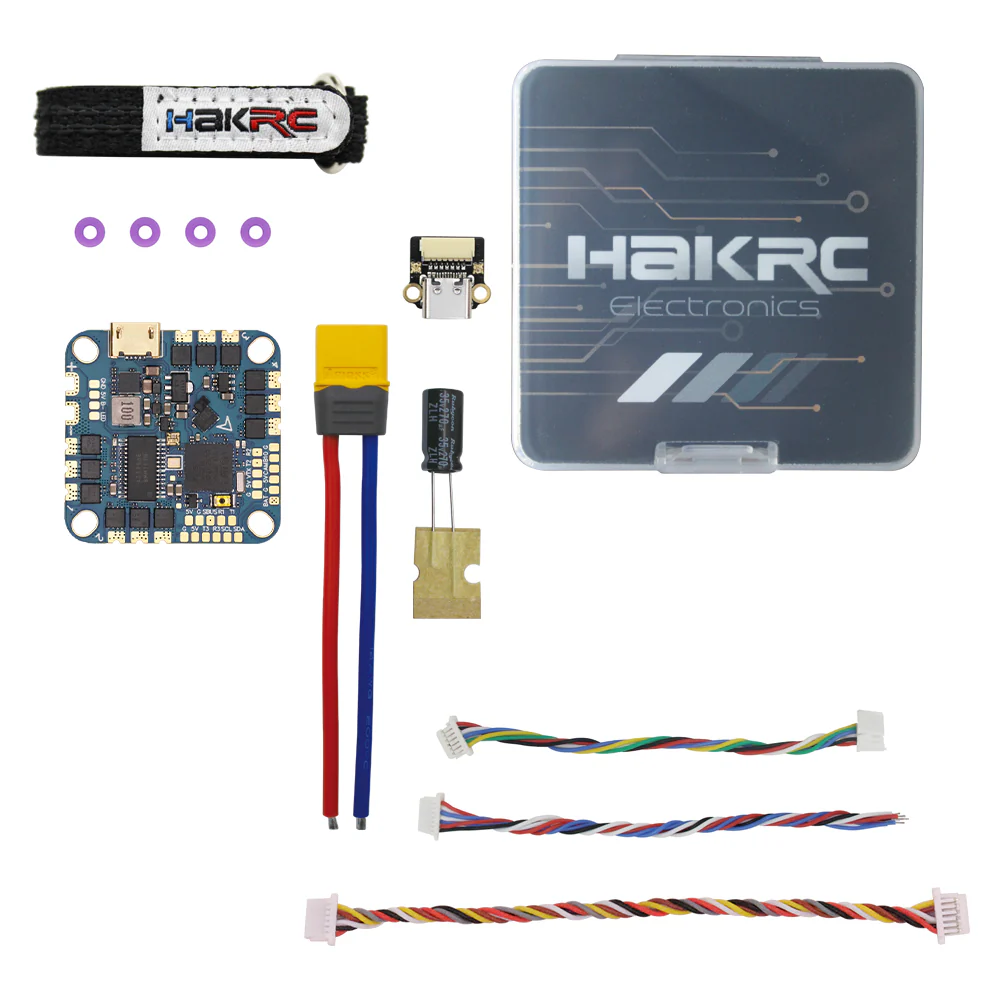

Package Included:

1x F411 20A AIO

4x M2 Shock absorber

1x XT30 power cord

1x Small bandage

1x Type-C USB

1x USB cable

1x 270uf/35V capacitor

1x DJI FPV Cable

1x DJI O3 Air Unit 3-in-1 Cable

1x Instructions
